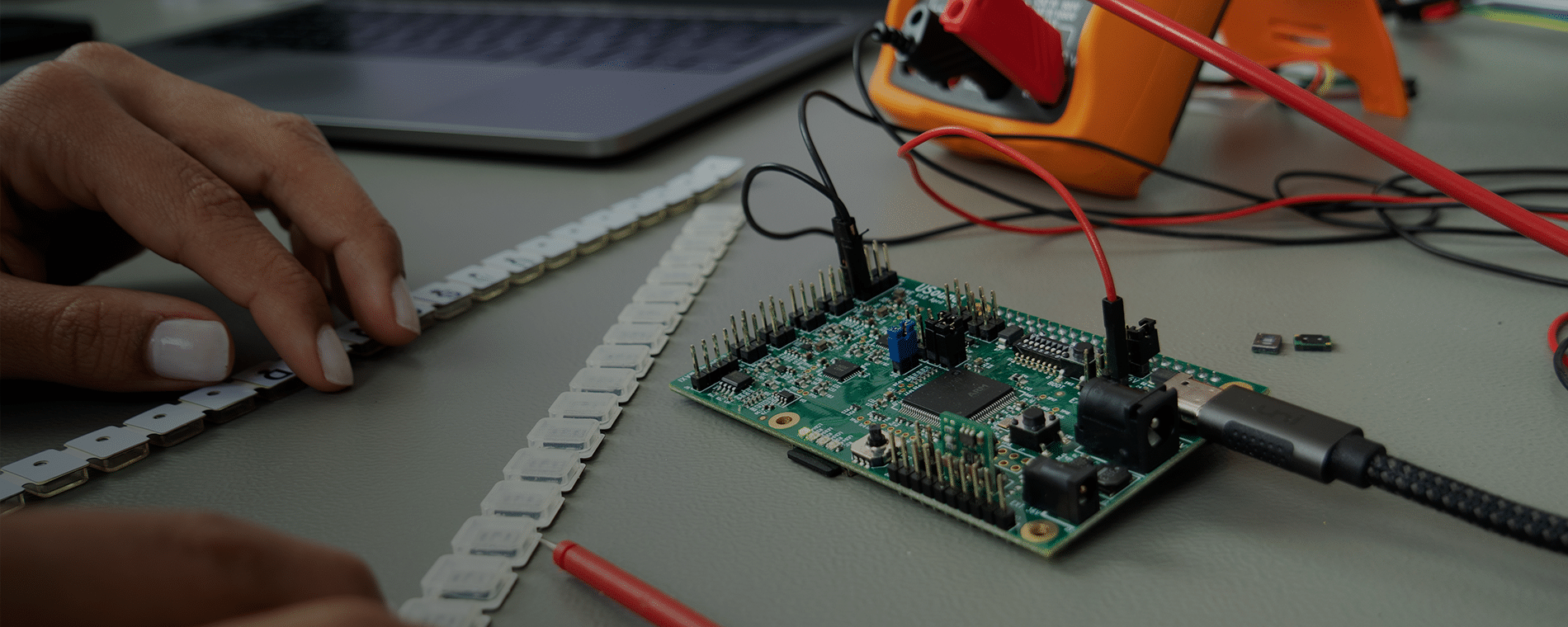

Helike

Development board

Utilize the most advanced MEMS speaker technology with the development board Helike 1.0 UA-E3010. This platform allows users to evaluate, prototype, and design audio solutions using USound MEMS speaker technology. The board can be used as a standalone component and is Raspberry Pi compatible. It features open-source software, and the acoustic response
can be tuned via PC.

Compatible with Raspberry Pi

The board functions in standalone mode, as an extension to the Raspberry Pi platform, or as a USB soundcard connected to a PC via USB-C.

Integrations and Applications

MEMS speaker amplifiers and electrodynamic speaker amplifiers are available on the PCB to enable the evaluation of several applications, including hearables and wearables. An output connector section allows the interface to various USound extension kits.

Rapid Prototyping

The development board can be used to design new custom solutions, rapid prototyping, and evaluate several USound audio solutions. Additionally, equalization presets are available for compatible USound extension kits.

Extension kits

Carme 3.0 UJ-R1030

The Carme 3.0 UJ-R1030 speaker box enables testing of the USound MEMS speaker’s acoustic performance in free field.

USound microspeaker speaker array

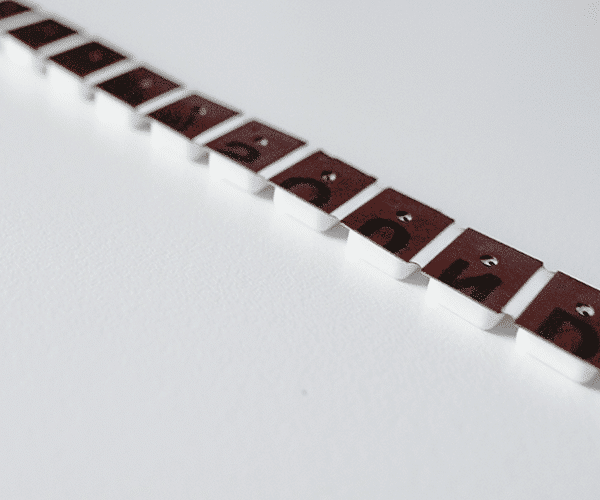

Dione sound strips

The flexible sound strips can be used as an audio solution for existing non-audio products as an array of tweeters in a typical multi-way system, including Hi-Fi. The strips are available in two versions: Dione Maxi UY-R3020 consisting of MEMS speakers with an external amplifier on a PCB, and Dione Mini UY-R3010 consisting of MEMS speakers with an integrated amplifier in the array.

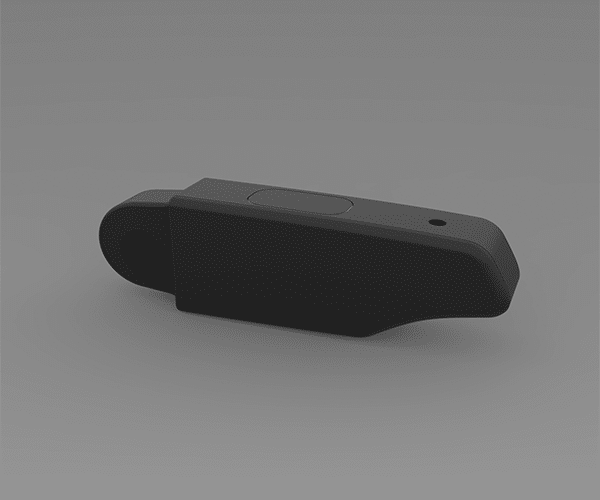

Danube 5.0 UAM-P2050

The Danube 5.0 UAM-P2050 audio temple is a platform for rapid prototyping AR/VR glasses, mixed reality (MR) glasses, and audio glasses. It provides the best-in-class audio performance and mechanical characteristics ratio to design high-end products.

Carme kit

Carme kit UJ-E1040G00

The Carme kit enables testing of the USound MEMS speaker’s acoustic performance in the coupler and the free field. The kit is available for the Ganymede series MEMS speakers, and it is also compatible with the linear amplifier Amalthea UA-R3010.

Carme kit UJ-E1040C06

The Carme kit enables testing of the USound MEMS speaker’s acoustic performance in the coupler and the free field. The kit is available for the Conamara series 6 mm MEMS speaker, and it is also compatible with the linear amplifier Amalthea UA-R3010.

Carme kit

Carme kit UJ-E1040C05

The Carme kit enables testing of the USound MEMS speaker’s acoustic performance in the coupler and the free field. The kit is available for the Conamara series 5 mm MEMS speaker, and it is also compatible with the linear amplifier Amalthea UA-R3010.

Ino UJ-A1010

Ino UJ-A1010 is an adapter board for the Helike 1.0 UA-E3010 development board with an integrated voltage divider to provide several DC voltage offsets to drive the Conamara series MEMS speakers.

Technical Documentation

Hardware

Helike 1.0 UA-E3010 Product brief

Download

Helike 1.0 UA-E3010 User manual

Download

Helike 1.0 UA-E3010 Schematics

Download

Carme 3.0 UJ-R1030 Quick guide

Download

Carme kit UJ-E1040C06, UJ-E1040C05 & UJ-E1040G00 Product brief

Download

Ino UJ-A1010 Quick User Guide

Download

Software

Make sure to keep the Helike 1.0 UA-E3010 firmware up to date. We are continuously working on new features and compatibility.

Updates

DSP Firmware for Helike 1.0 UA-E3010 – Latest update v3.4.0 – Jan 2023

Audio device configuration for Helike 1.0 UA-E3010 – Latest update v3.4.0 – Jan 2023
